Front Rim

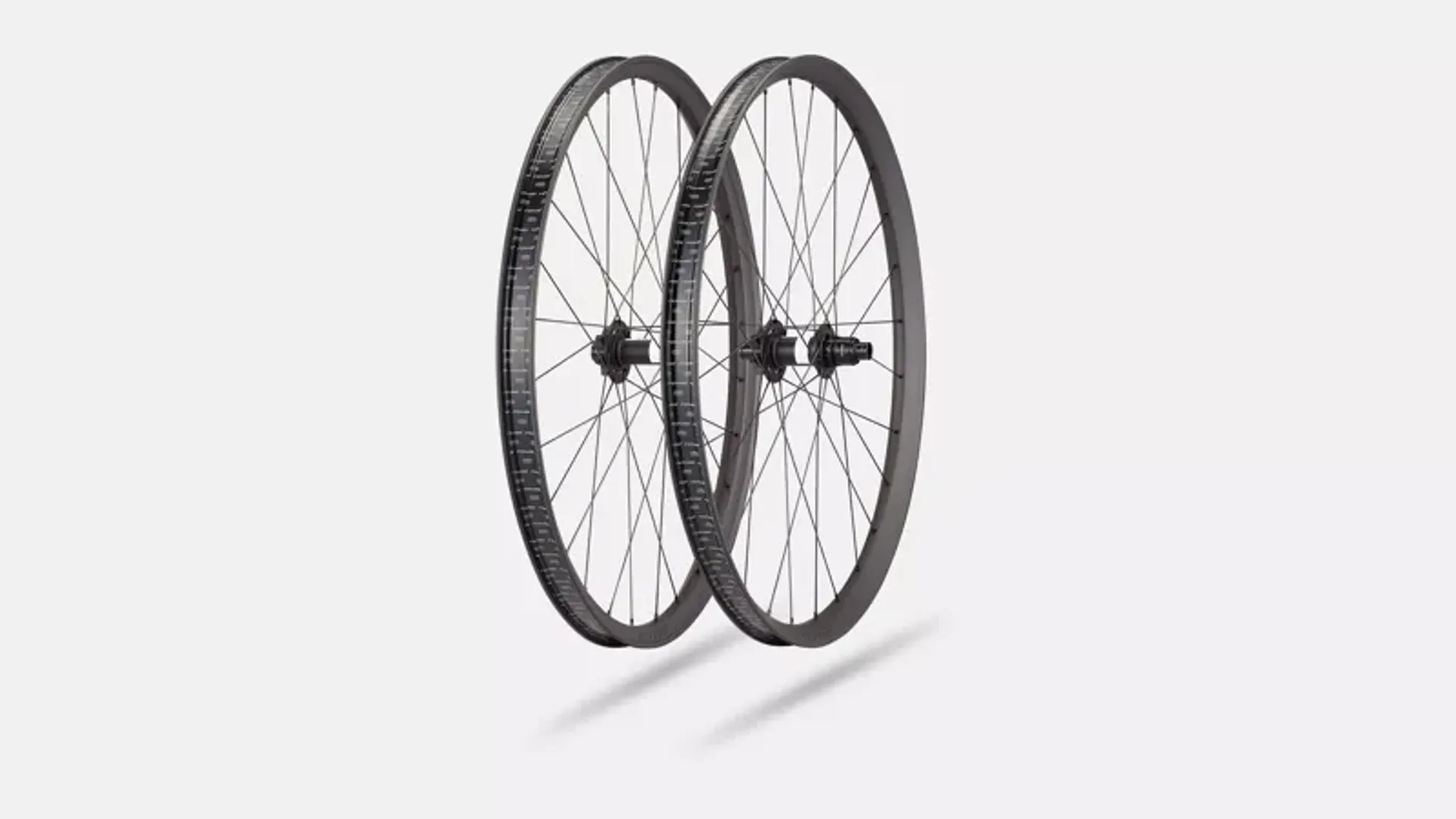

Traverse HD Asymmetric Carbon 29" (WC037-1)
-
Front Rim Dimensions
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm
-
Rear Rim
Traverse HD Asymmetric Carbon 29" (WC037-3), 27.5" (WC041-3)
-
Rear Rim Dimensions
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm
-
Rim Construction
Carbon Clincher Hookless
-
Wheel Size / ETRTO
Front: 29"/622 mm, Rear: 29"/622 mm 27.5"/584 mm
-
Hole Count
Front: 28H, Rear: 32H
-
Tubeless Compatibility
Yes
-
Insert Compatibility
Yes
-
Brake Compatibility
Disk (6-Bolt)
-
Valve Stem Length
Roval Thread Bead 37mm, Standard Presta greater than 37mm
-
Front Hub
DT Swiss 350 J-Bend, 6-Bolt, 15x110mm, 19mm OD End Caps Installed
-
Rear Hub
DT Swiss 350 J-Bend, 6-Bolt, 12x148mm
-
Front Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Freehub Body
DT Swiss Ratched DEG (72T): Sram XD
-
Front Spokes
DT Swiss Competition Race
-
Rear Spokes
DT Swiss Competition Race
-
Front Lacing Pattern
Two-cross / Two-cross (1:1) Tucked
-
Rear Lacing Pattern
Three-cross / Three-cross (1:1) Tucked
-
Nipples
DT Swiss Pro Lock, Hexagonal, Alloy
-
Approved Tire Widths
2.3” - 2.6”
-
Max Pressure
Tubeless 40 psi, Tubes 40 psi
-
Tire Type
Tubeless, Tube Type Clincher
-
Tubeless Tape Width
32 mm
-
Design Tire
Butcher Grid Trail T9 TLR Trail Tire 29 x 2.4
-
Front Weight
824g (with valves and tape)
-
Rear Weight
1,060g (with valves and tape) - 29" / 954g (with tape and valves) - 27.5"
-
Wheelset Weight
1,884g (with valves and tape) - 29" / 1,778g (with tape and valves) - 29/27.5"
-
Extras
4 Extra Spokes and Nipples, 31mm OD End Caps
-
E-bike Approved
Yes
-
Weight Limit
275 lbs. / 125 kg.
-
Assembly Method
Hand Built
