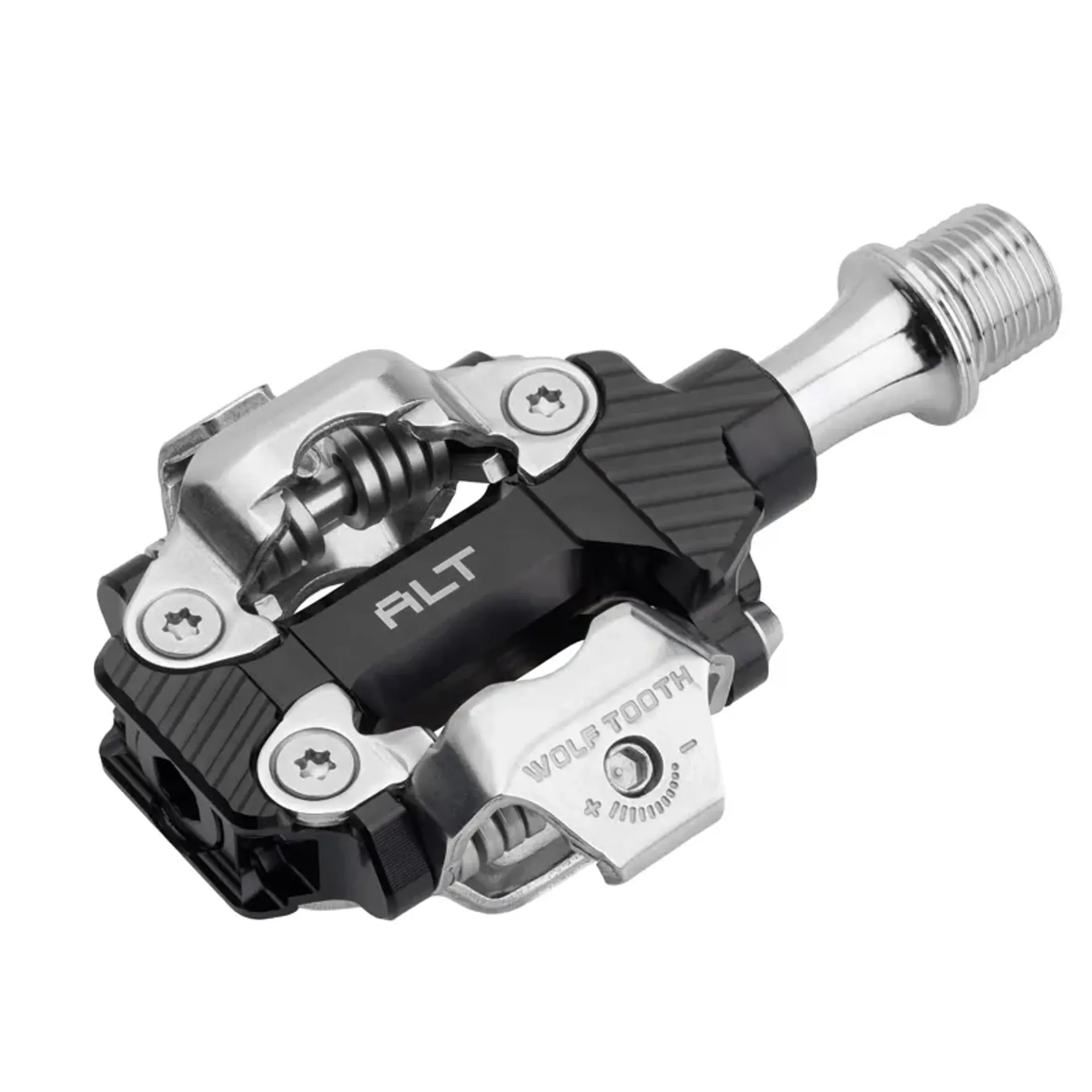

ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads.
These pedals are simultaneously lighter and thinner than other XC pedals, featuring an exceptionally low stack height, while also having more platform area for control and power transfer. An open center between the cages means increased mud shedding compared to other SPD-compatible pedals.
The large platform area maximizes pedal and shoe contact, creating unprecedented control and power transfer. With ALT XC Clipless Pedals, the shoe contacts the pedal body for enhanced performance on gravel and trails alike. The SPD-compatible stainless steel binding assemblies and axles create strong, rust-free pedals that are ready to ride hard.
Clipping in and out is simple, quick, and reliable. The pedals feature an SPD-compatible stainless steel binding that works with existing SPD cleats, and they are optimized for the Wolf Tooth cleats included in the box. The internal components use the same proven design from Wolf Tooth's popular Waveform Aluminum Pedals, including a machined stainless steel axle, three low-friction cartridge bearings, and one igus bushing with a custom radial seal that protects internal components from trail debris. These pedals are fully serviceable, with all replacement parts available.
The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This adjustment is simple enough for anyone to do at home.
Features:
- Thinner than the competition at 15 mm.
- Lighter than the competition at 294g.
- Larger platform area than the competition at 345 mm².
- Adjustable Q factor options of 51, 55, and 59 mm (pedals ship in 55 mm position).
- 5 degrees float | 12 degrees release.

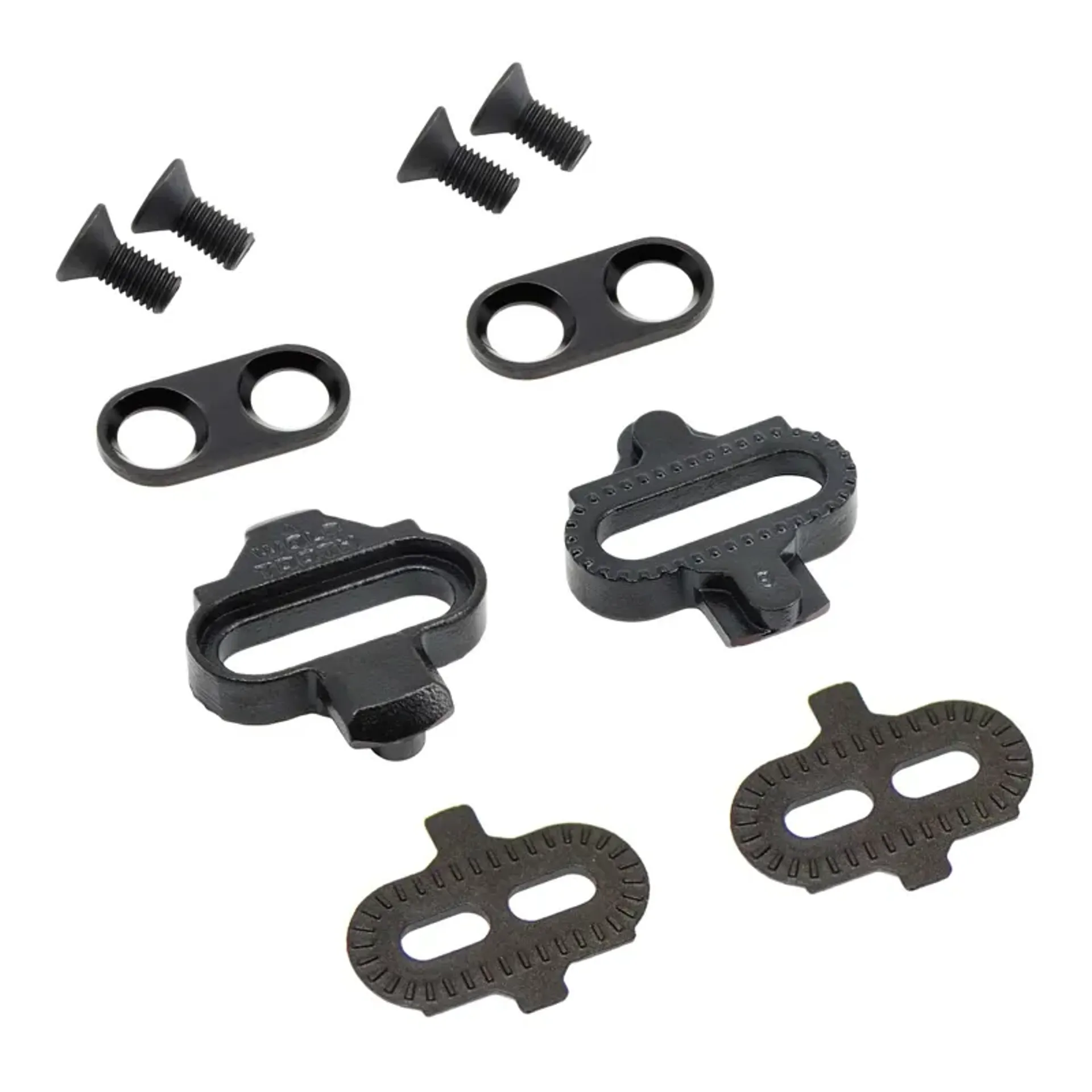

- Compatible with SPD cleats; Wolf Tooth cleats included.
- Proven axle and bearing design from Waveform Aluminum Pedals.
- Body: 6061-T6 aluminum CNC machined.
- Axle: heat-treated 17-4 PH stainless steel.
- Binding Cage and Hardware: stainless steel.
