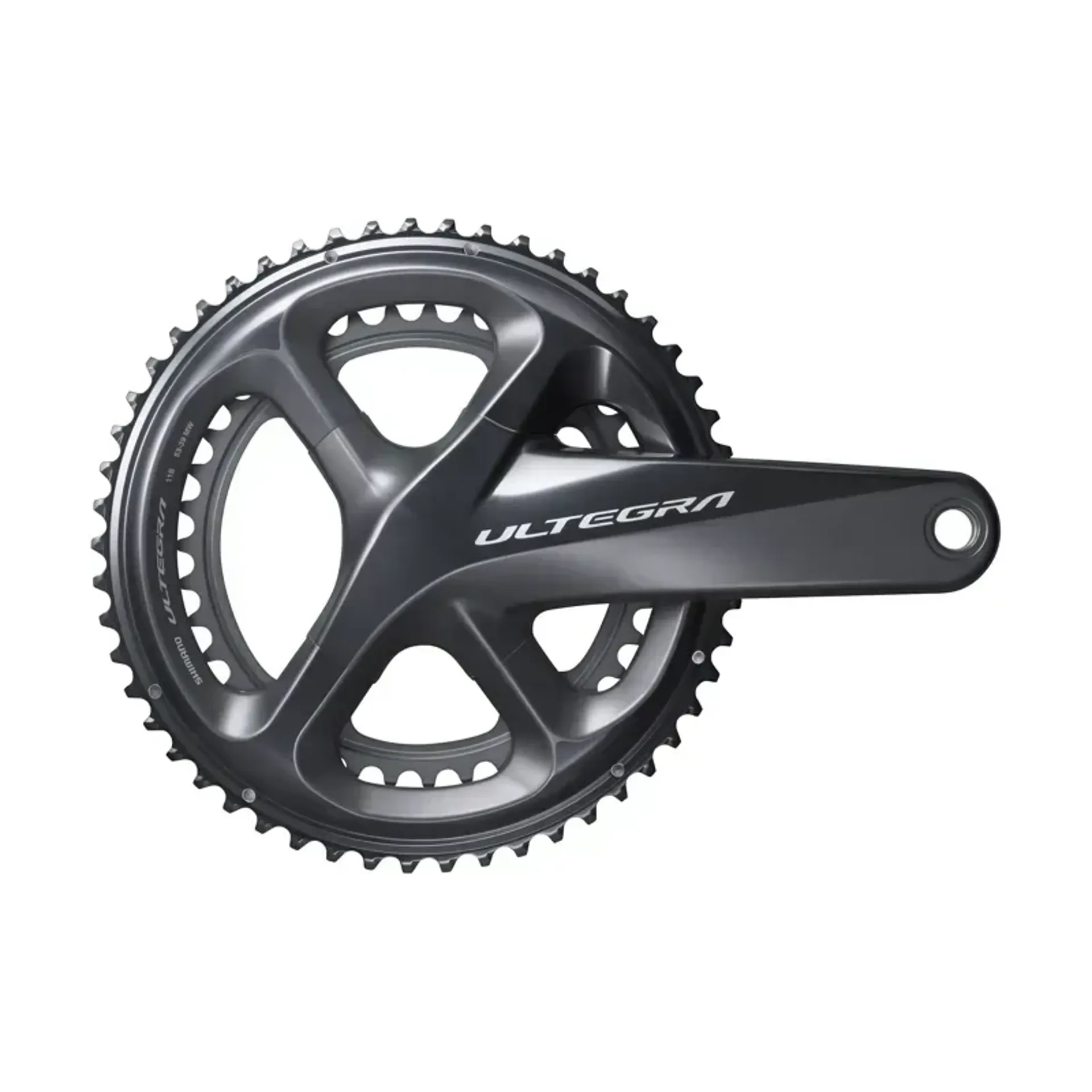

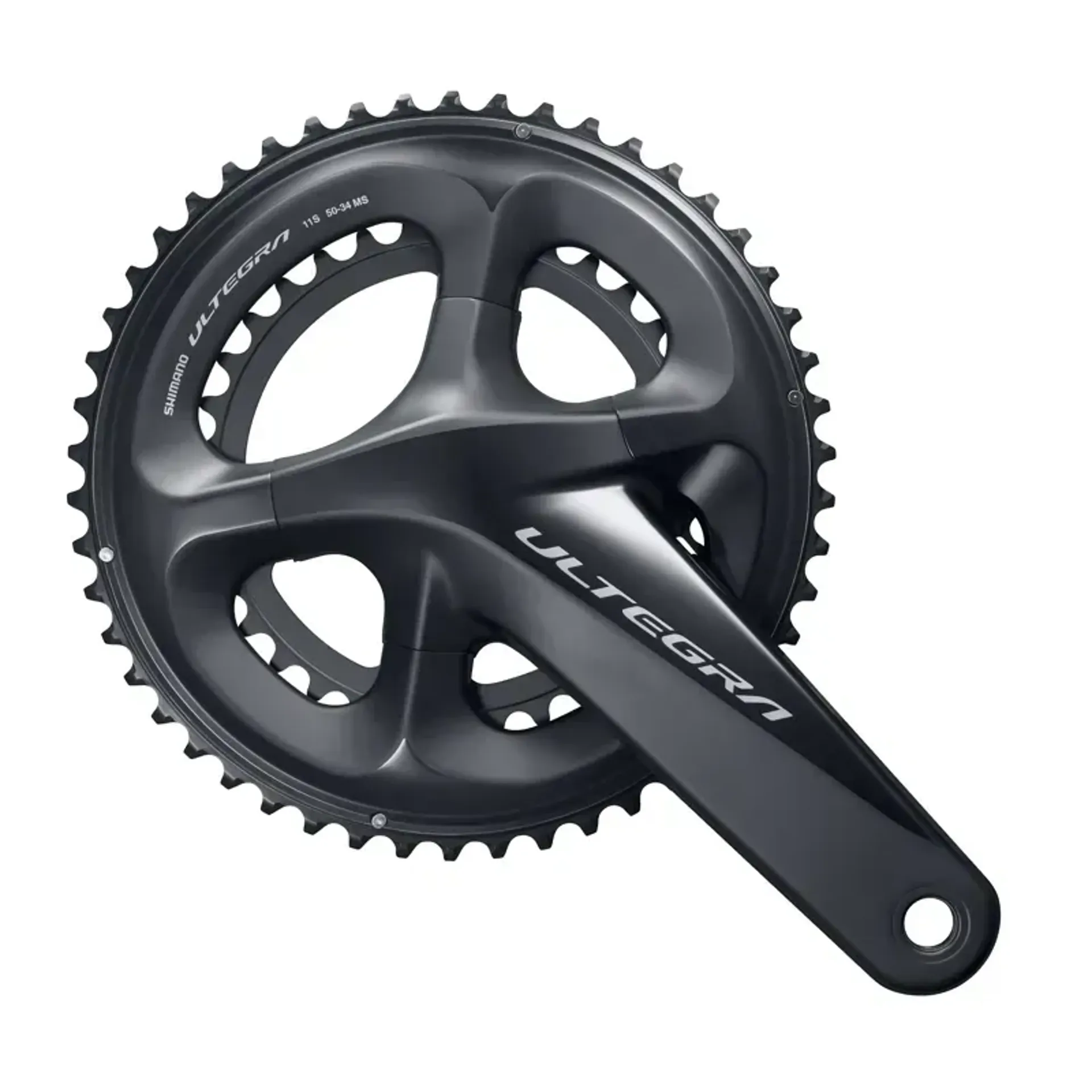

The Shimano FC-R8000 series crank features lightweight crankarms, a hollow outer chainring, and a wider gear pitch for increased clearance.
The Shimano FC-R8000 series crank features lightweight crankarms, a hollow outer chainring, and a wider gear pitch for increased clearance.
Shimano

Shimano Ultegra R8000 34t 110mm 11-Speed Chainring For 34/ 50t Black

$24.95
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Shimano Ultegra R8000 34t 110mm 11-Speed Chainring For 34/ 50t Black

Season:2018

Brand:Shimano

Code:CK9175

The Shimano FC-R8000 series crank features lightweight crankarms, a hollow outer chainring, and a wider gear pitch for increased clearance on modern road frames.

It is available with 53-39, 52-36, 50-34, and 46-36T chainrings and 165, 170, 172.5, and 175mm crank arm lengths.

Features:

  • Lightweight crankarm design optimized for power-transfer efficiency
  • Minimal weight without sacrificing stiffness
  • Technology: HOLLOWTECH II
  • Rider-tuned gear performance through various gear combinations
  • Redesigned FC for greater frame compatibility
  • Wider gear pitch increases clearance between chain and leading teeth, providing compatibility with frames of O.L.D. 135 mm and 410 mm chainstay length
Technical Information
  • Model No
    FC-R8000
  • Series
    ULTEGRA
  • Rear speeds
    11
  • Compatible chain
    LINKGLIDE, HG 11-speed
  • Chain line (mm)
    43.5
  • P.C.D. left / right (mm)
    110
  • P.C.D. (mm)
    110
  • Spider/gear arms
    4
  • Chainring combination
    46-36T, 50-34T, 52-36T, 53-39T
  • Q-factor (mm)
    146
  • Crank arm length (mm)
    165 170 172.5 175
  • Optional chain guard
    Without chain/bash guard
  • HOLLOWTECH II
  • HOLLOWTECH crank arm
  • HOLLOWGLIDE
    ✔, - (46-36T)
  • Compatible bottom bracket type
    Outboard
  • Recommended bottom bracket
    Threaded (normal) SM-BBR60 Press-Fit SM-BB72-41B
  • Threaded bottom bracket shell width (mm)
    68 70
  • Crank fixing screw included
  • Average weight
    668 (46-36T) 674 (50-34T) 681 (52-36T) 690 (53-39T)
