This 2-piece crank uses an outboard, 24mm bottom bracket and features 2x11 speed 52-36, 50-34, and 46-36T compact chainrings.
This 2-piece crank uses an outboard, 24mm bottom bracket and features 2x11 speed 52-36, 50-34, and 46-36T compact chainrings.
Shimano

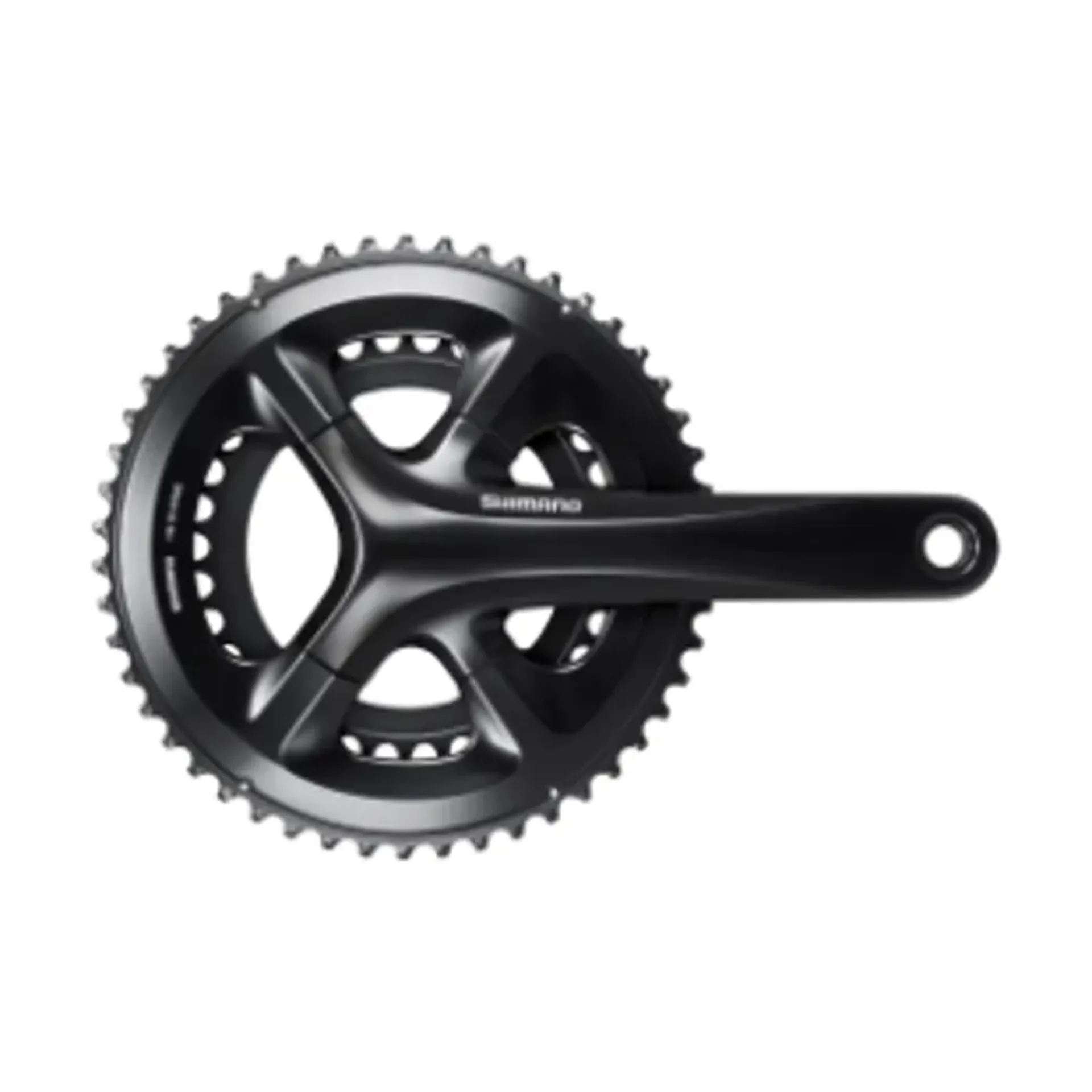

Shimano FC-RS510 175mm 34/50t Crankset in Black

$149.99
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Shimano FC-RS510 175mm 34/50t Crankset in Black

Season:2019

Brand:Shimano

Code:CK0324

This 2-piece crank uses an outboard, 24mm bottom bracket and features 2x11 speed 52-36, 50-34, and 46-36T compact chainrings.

It uses a 4-arm construction and is compatible with modern disk brake road frames.

Features:

  • Affordable and high-end style crankset
  • 4-arm crankset for 11-speed drive train
  • Compatible with frames of O.L.D. 135 mm and 410 mm chainstay length
  • New gear combination: 52-36T, 46-36T
  • Current gear combination: 50-34T
  • 2-PIECE CRANKSET
Technical Information
  • Series
    SHIMANO
  • Rear speeds
    11
  • Compatible chain
    LINKGLIDE, HG 11-speed
  • Chain line (mm)
    43.5
  • P.C.D. left / right (mm)
    110
  • P.C.D. (mm)
    110
  • Spider/gear arms
    4
  • Chainring combination
    46-36T, 50-34T, 52-36T
  • Q-factor (mm)
    150
  • Crank arm length (mm)
    165, 170, 172.5, 175
  • Optional chain guard
    Without chain/bash guard
  • Crankset type
    2-piece
  • Compatible bottom bracket type
    Outboard
  • Recommended bottom bracket
    Threaded (normal), Press-Fit
  • Threaded bottom bracket shell width (mm)
    68, 70
  • Crank fixing screw included
    Yes
  • Average weight
    908 g (50-34T)
  • Color
    Black
