SHIMANO DEORE FC-M6100-1 crankset for 12-speed systems, featuring improved chain retention with a special gear tooth profile.
SHIMANO DEORE FC-M6100-1 crankset for 12-speed systems, featuring improved chain retention with a special gear tooth profile.
Shimano

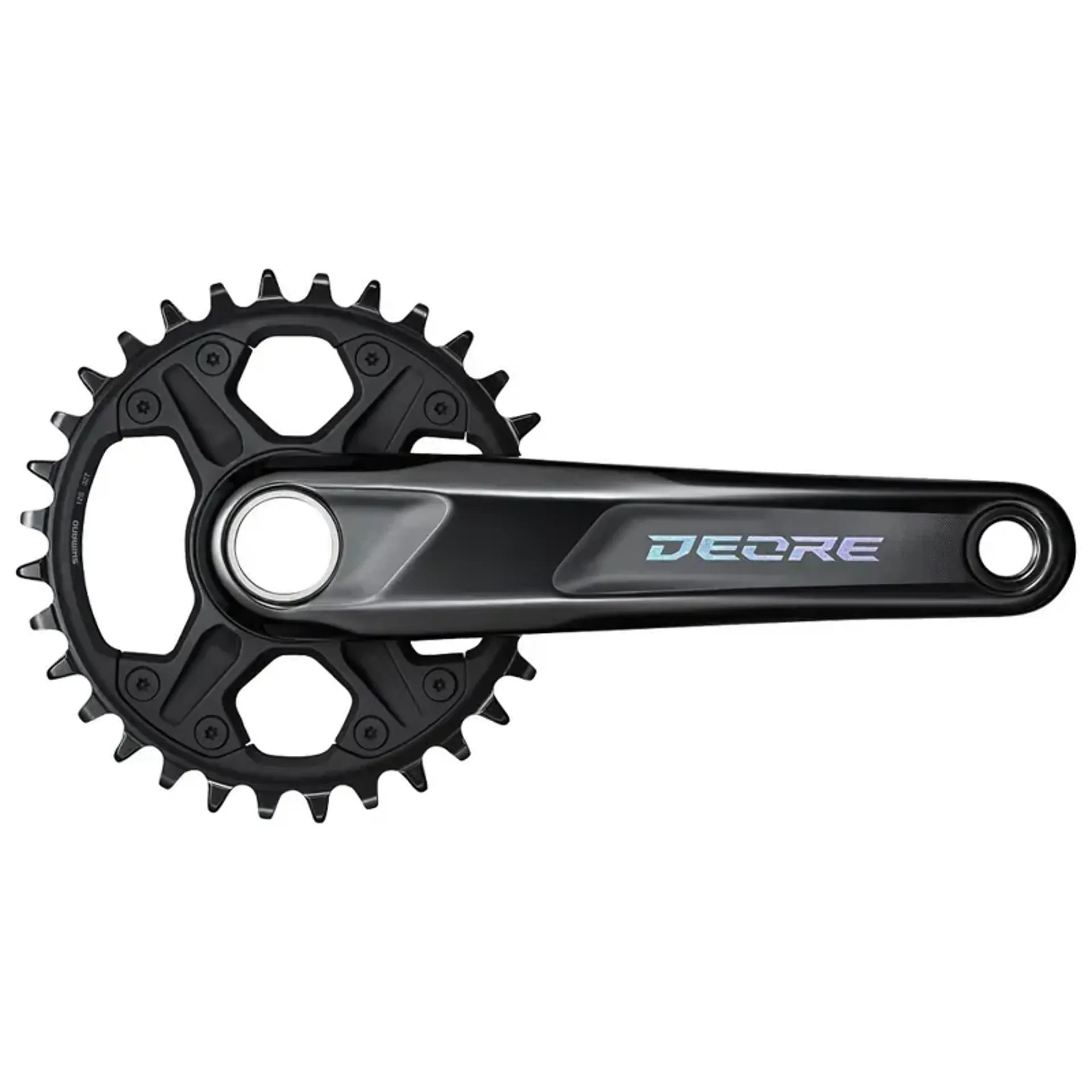

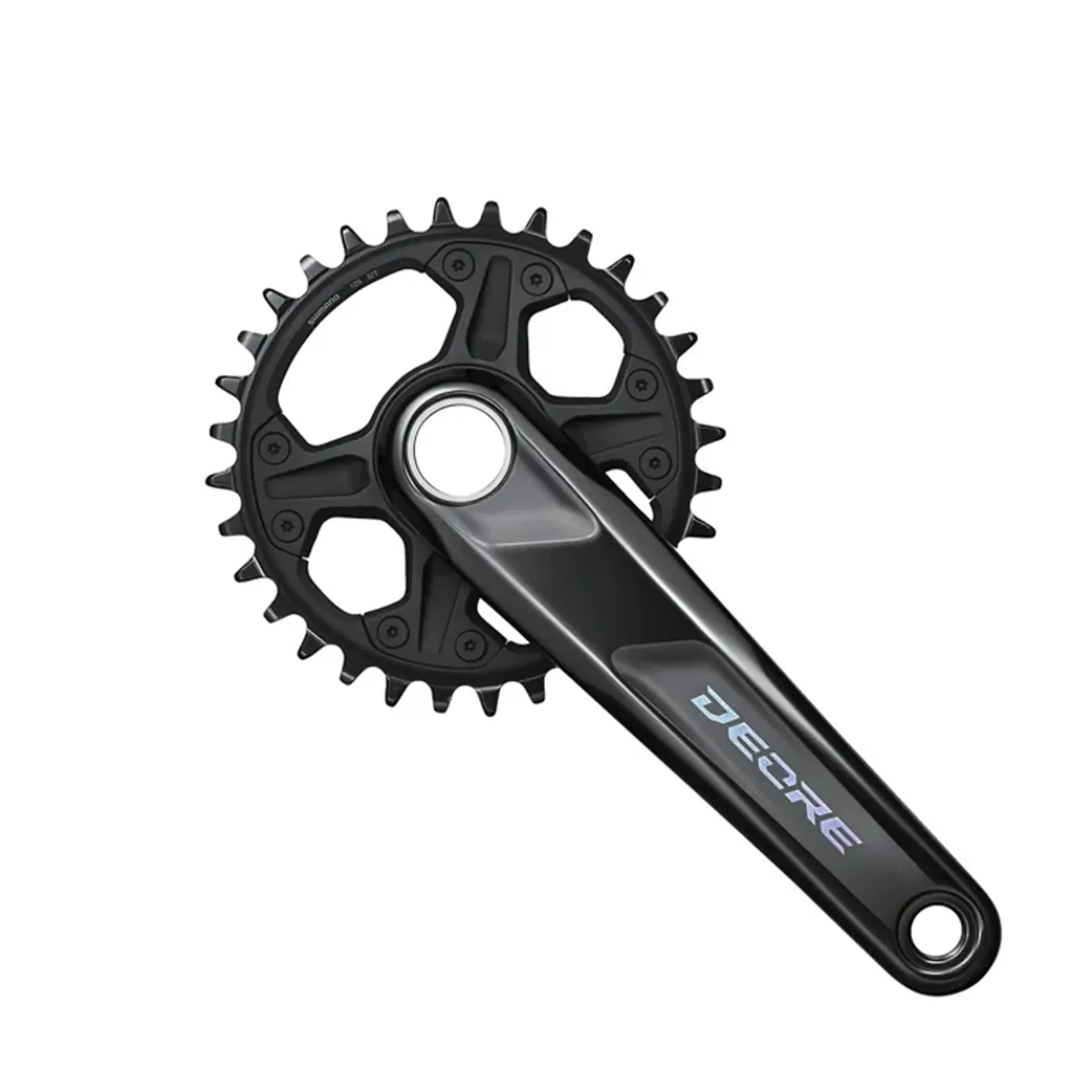

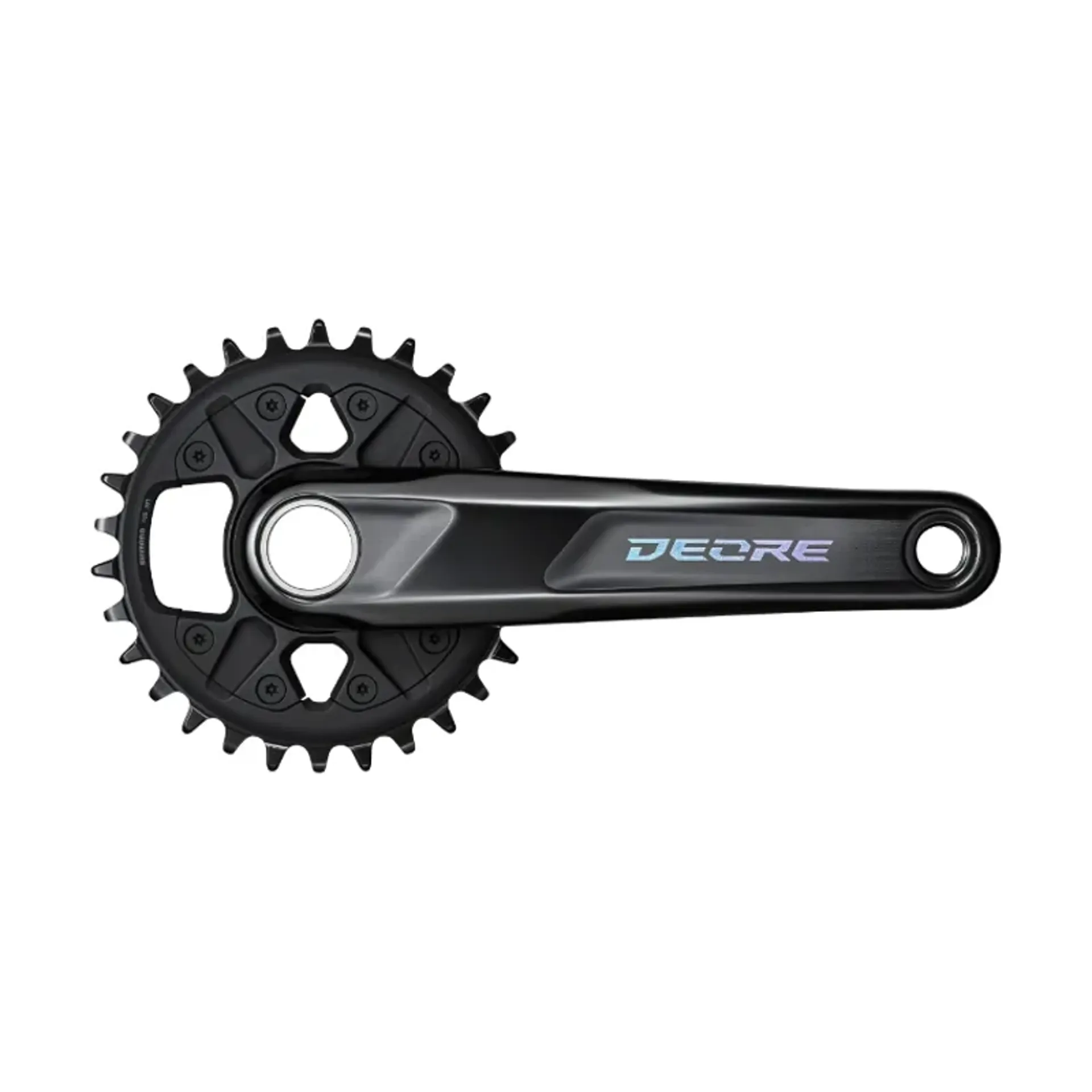

Shimano Deore FC-M6100 52mm Chainline Crankset in Black

$130.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Shimano Deore FC-M6100 52mm Chainline Crankset in Black

Season:2021

Brand:Shimano

Code:CK0392

SHIMANO DEORE FC-M6100-1 crankset for 12-speed systems. Features improved chain retention with a special gear tooth profile.

The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings and a special gear tooth profile for improved chain retention. This crankset has a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.

Features:

  • DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
  • Direct mount chainring
Technical Information
  • Model No
    FC-M6100-1
  • Series
    DEORE
  • Rear speeds
    12
  • Compatible chain
    HG 12-speed
  • Chain line (mm)
    52
  • O.L.D.
    Thru (mm): 142, 148; QR/Nut (mm): 135, 141
  • P.C.D. (mm)
    Direct
  • Spider/gear arms
    4
  • Chainring combination
    30T, 32T
  • Q-factor (mm)
    172
  • Crank arm length (mm)
    165, 170, 175
  • Optional chain guard
    Without chain/bash guard
  • 2-PIECE CRANKSET
  • Compatible bottom bracket type
    Outboard
  • Recommended bottom bracket
    Threaded (normal): BB-MT501; Press-Fit: BB-MT500-PA
  • Threaded bottom bracket shell width (mm)
    68, 73
  • Crank fixing screw included
