Suspension pivot bolt kit for 2018 - 2020 Stumpjumper Sidearm bikes, including all necessary bolts and spacers for comprehensive maintenance.
Suspension pivot bolt kit for 2018 - 2020 Stumpjumper Sidearm bikes, including all necessary bolts and spacers for comprehensive maintenance.
Specialized

Specialized Stumpjumper FSR J1 Carbon/Alloy Bolt Kit in Black

$61.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Specialized Stumpjumper FSR J1 Carbon/Alloy Bolt Kit in Black

Season:2024

Brand:Specialized

Code:S184200067

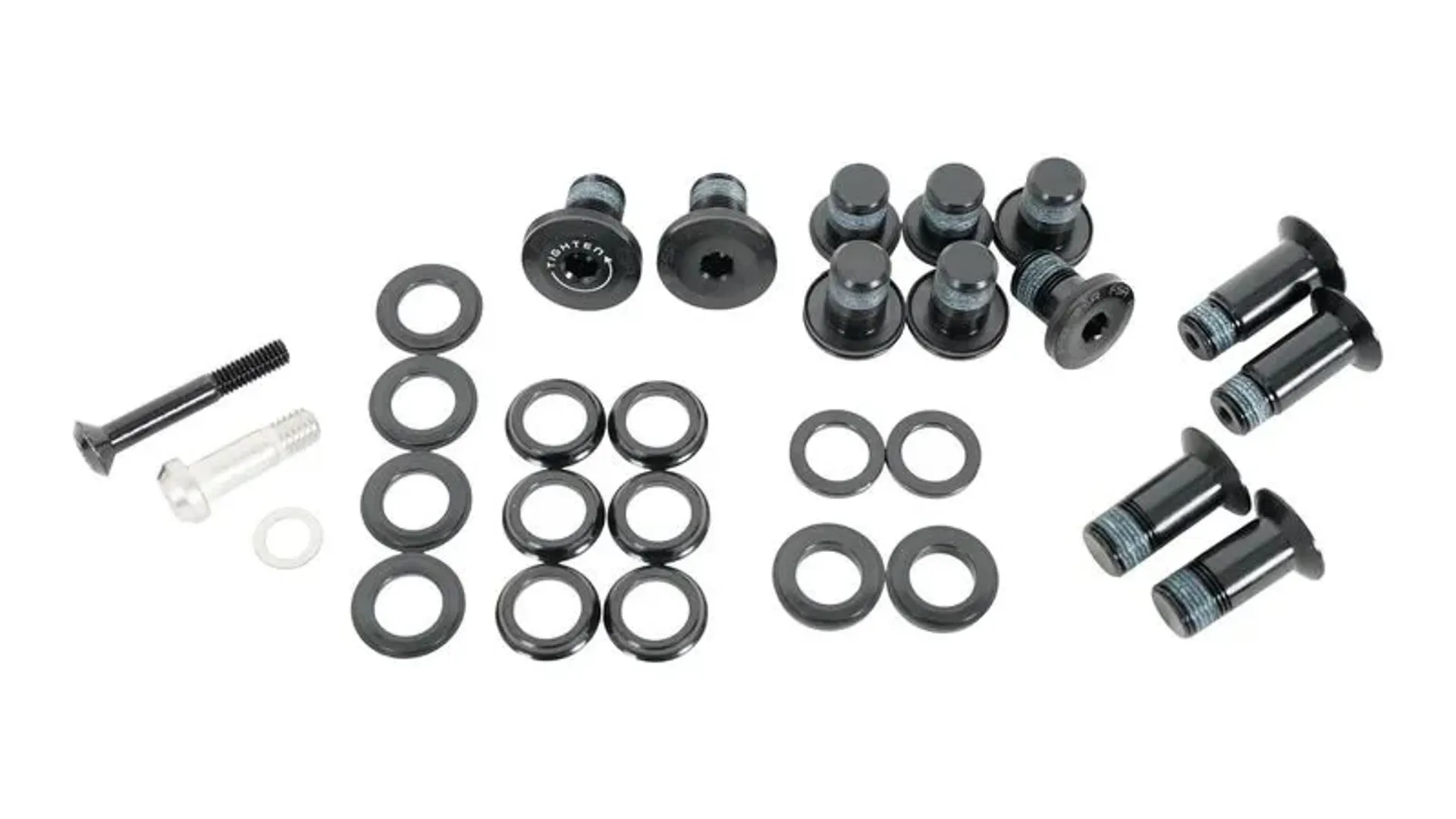

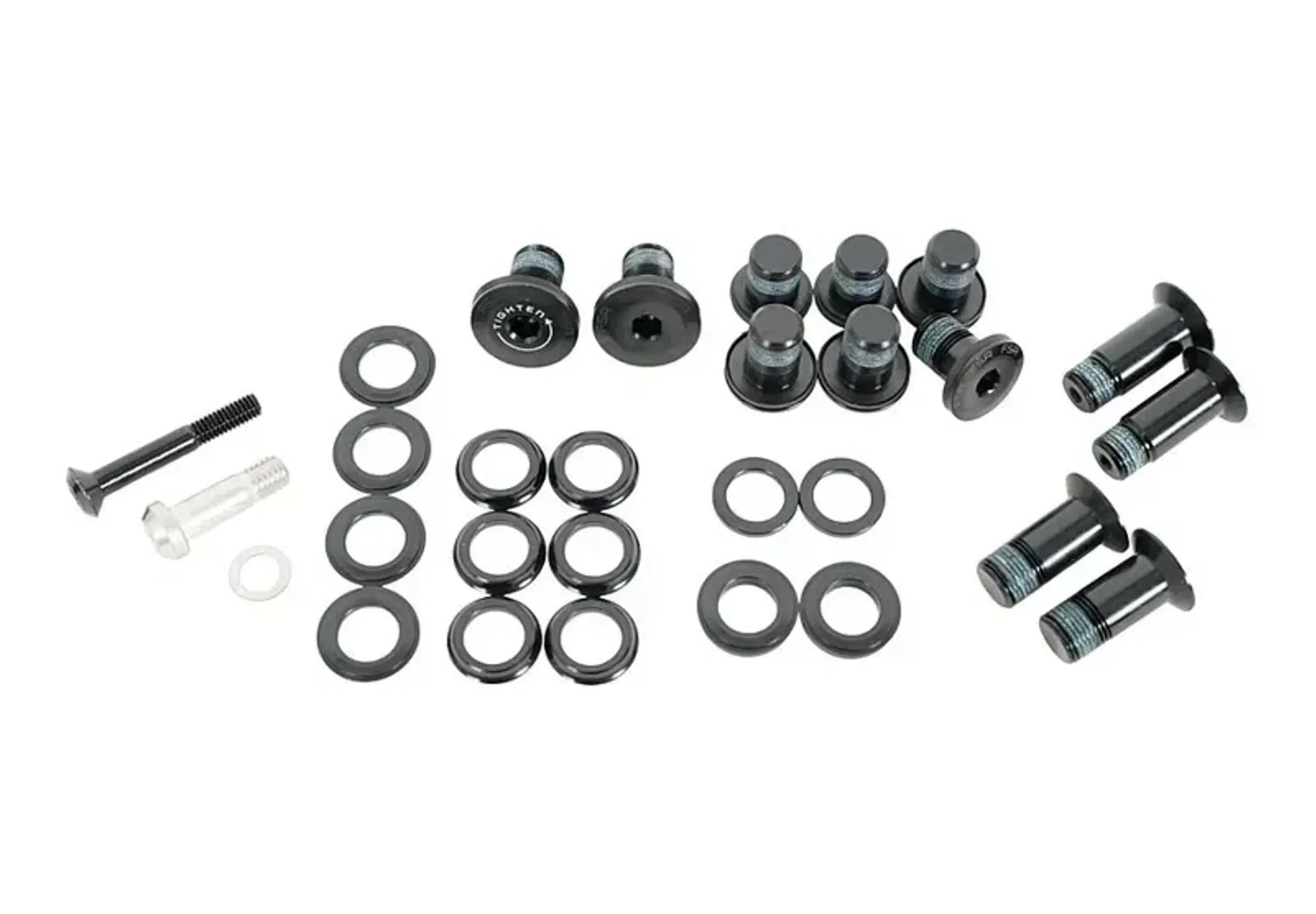

This suspension pivot bolt kit is designed for 2018 - 2020 Stumpjumper Sidearm bikes and includes all necessary bolts and spacers.

This comprehensive kit provides replacement hardware for various pivot points on the frame, ensuring proper function and maintenance of your suspension system. It includes specific bolts and spacers for the Main Pivot (Chainstay), Seatstay Horst Link Pivot, Shock Link to Seat Tube Pivot, Shock Link to Shock Extension Pivot, and Shock Link to Seatstay Pivot.

Features:

  • Main Pivot (Chainstay) Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 23.7 Nm (210 in-lbf) - 1 pcs.
  • Main Pivot (Chainstay) Pivot Bolt: Reverse thread - 12mm W x 17mm L - Alloy - Torque: 23.7 Nm (210 in-lbf) - 1 pcs.
  • Main Pivot (Chainstay) Pivot Spacer: 12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
  • Seatstay Horst Link Pivot Bolt: 12mm W x 30mm L - Alloy - Torque: 20.3 Nm (180 in-lbf) - 2 pcs.
  • Seatstay Horst Link Pivot Outer Spacer: 12mm ID x 21mm OD x 2.5mm W - Alloy - 4 pcs.
  • Seatstay Horst Link Pivot Inner Spacer: 12mm ID x 18mm OD x 2mm W - Alloy - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 20.3 Nm (180 in-lbf) - 2 pcs.
  • Shock Link to Seat Tube Pivot Spacer: 12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 20.3 Nm (180 in-lbf) - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 20.3 Nm (180 in-lbf) - 2 pcs.
Technical Information
  • Season
    2018
  • Color
    Black
