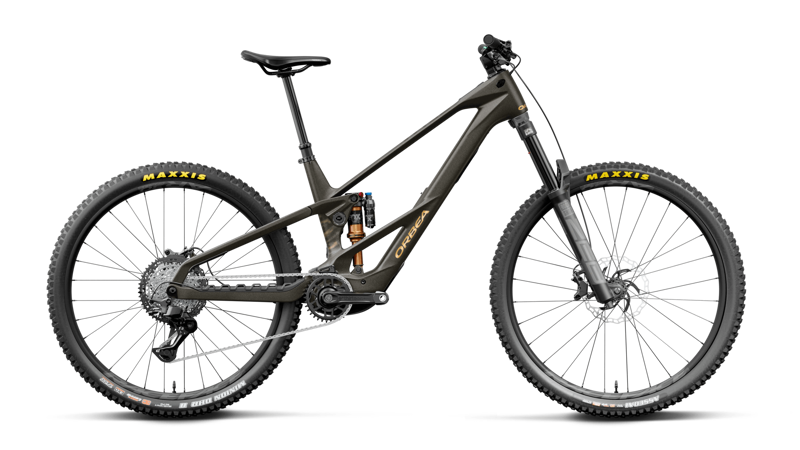

WILD LT M20 20mph
WILD LT M20 20mph
Orbea

WILD LT M20 20mph Magic Gold CView Matt - Titan Gold

$7,717.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

WILD LT M20 20mph Magic Gold CView Matt - Titan Gold

Season:2027

Brand:Orbea

Code:U613TTCCX5


The yes machine

nature doesn't like straight lines. It bends and flows, soars and falls. Unlock your instincts. Leave questions of how far or how fast behind. Because whatever question the trail poses, the answer is always yes.


Omr carbon

high modulus, high-strength fibers, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity. The carbon frameset also includes a carbon link which removes further mass higher up in the frame.


Gravity kinematics

a 170mm fork matched with 170mm rear travel gives wild lt the balance to perform. Or choose the optional 180mm fork for more the most aggressive riding.


Avinox m2s motor

our custom rs tuning makes the motor respond faster, giving you a stronger, more immediate punch when you need it most on technical climbs.


Maximised ground clearance

carefully tuned bottom bracket height, and 155mm cranks on all sizes mean you can keep pedalling even on the roughest climbs.


Fully loaded pivot

a multitool with 2, 3, 4, and 5mm hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.

Technical Information
  • Frame
    Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
  • Shock
    Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
  • Fork
    RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost
  • Motor
    Avinox M2S
  • Ebike Battery
    Avinox 800Wh
  • Display
    Avinox DP100
  • Charger
    Avinox Charger 4A
  • Remote
    Avinox BC100
  • Chainring
    e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine
  • Crank
    e*thirteen Helix Core e*spec
  • Shifters
    Shimano Deore M6200 I-Spec EV
  • Cassette
    Shimano CS-M6200 10-51t 12-Speed
  • Rear Derailleur
    Shimano Deore M7200 SGS Shadow Plus
  • Chain
    Shimano M6100
  • Chainguide
    Orbea eBike chainguide
  • Handlebar
    OC Mountain Control MC30, Rise20, Width 800
  • Stem
    OC Mountain Control MC20, 0º
  • Computer Mount
    OC Computer Mount CM-05, Garmin/Sigma
  • Brakes
    Shimano MT420 Hydraulic Disk
  • Brakes Configuration
    N/A
  • Wheels
    Race Face AR 30c Tubeless Ready
  • Tires
    Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Seatpost Lever
    Shimano SL-MT500 I-Spec EV
  • Saddle
    Fizik Aidon 208x145mm manganese rail
  • Grips
    OC Lock On
Sizing Information
Height (cm)InSize
150–17559.1"–68.9"S
160–18563.0"–72.8"M
170–19566.9"–76.8"L
180–20570.9"–80.7"XL
MeasurementS – HighM – HighL – HighXL – HighS – LowM – LowL – LowXL – Low
Seat Tube (C-T)400405410420400405410420
Head Tube110120130140110120130140
Chainstay448448448448448448448448
BB Drop2020202028282828
BB Height360.5360.5360.5360.5352.5352.5352.5352.5
Wheelbase12291256128813171230125712891318
Head Angle63.90º63.90º63.90º63.90º63.34º63.34º63.34º63.34º
Seat Angle78.00º78.00º78.00º78.00º77.50º77.50º77.50º77.50º
Reach436.25461.25486.25511.25430455480505
Stack624.5633.48642.46651.44628.71637.93647.15656.37
Fork Length170170170170170170170170

All measurements in mm unless noted.
