Motor
Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal
-
Battery
Specialized U1-460, On/Off button, state of charge display, 460Wh
-
UI/Remote
Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages
-
Wiring Harness
Custom Specialized harness
-
Charger
Custom Specialized 42V2A Charger w/ Rosenberger plug, AC power cord included
-
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
-
Seat Binder
Alloy, bolt-type, 34.9mm
-
Fork
Turbo Como aluminum disk fork, 15x100mm thru-axle
-
Brakes
Front: Tektro HD-T275, hydraulic disk, 180mm; Rear: Tektro HD-T275, hydraulic disk, 160mm
-
Chainrings
40T
-
Shift Levers
Shimano Alivio, 9-speed w/ Optical Gear Display
-

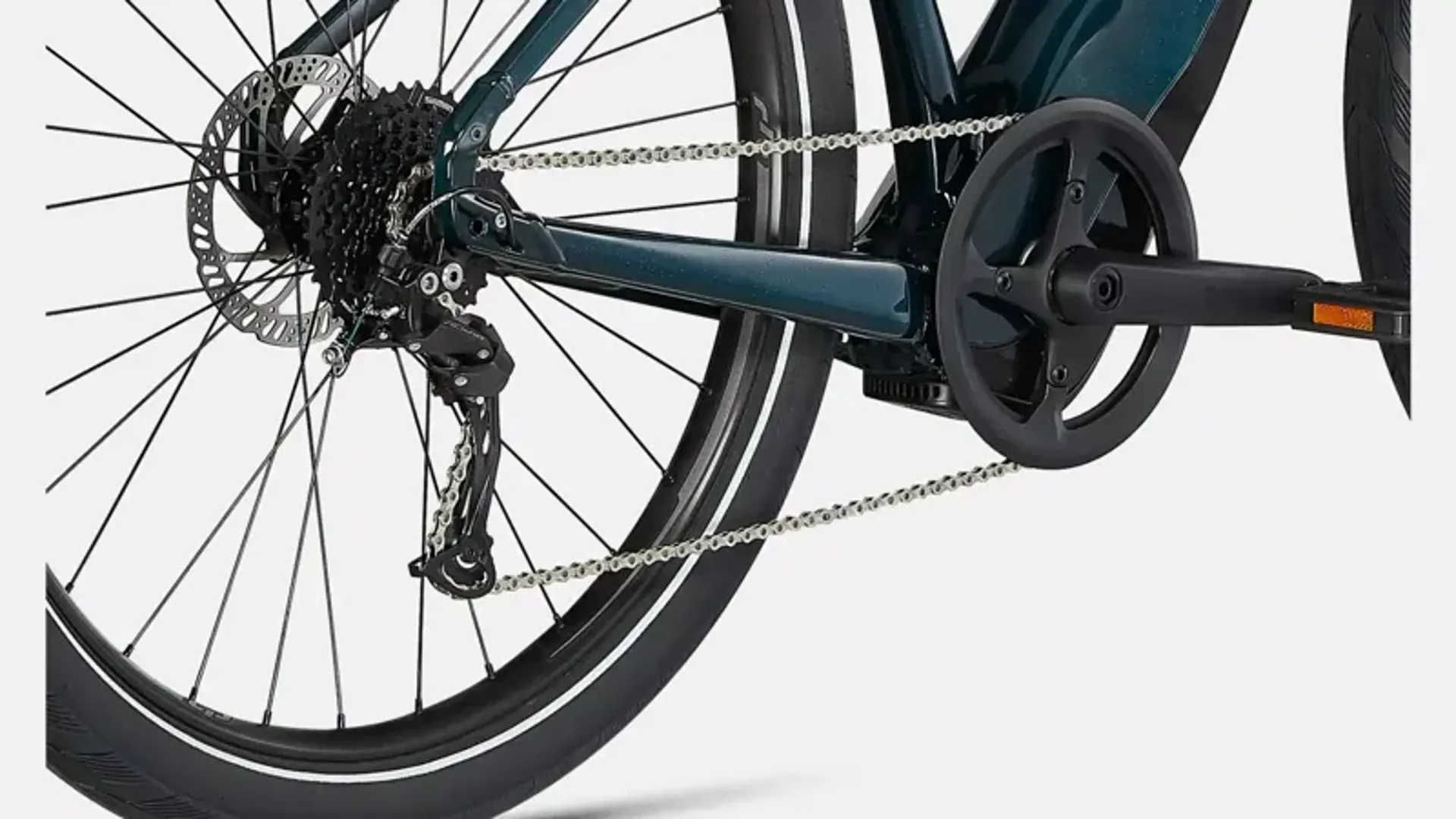

Rear Derailleur
Shimano Alivio, SGS, 9-speed
-
Cassette
Shimano CS-HG200, 9-speed, 11-36t
-
Chain
KMC e9T, 9-speed w/ Missing Link™
-

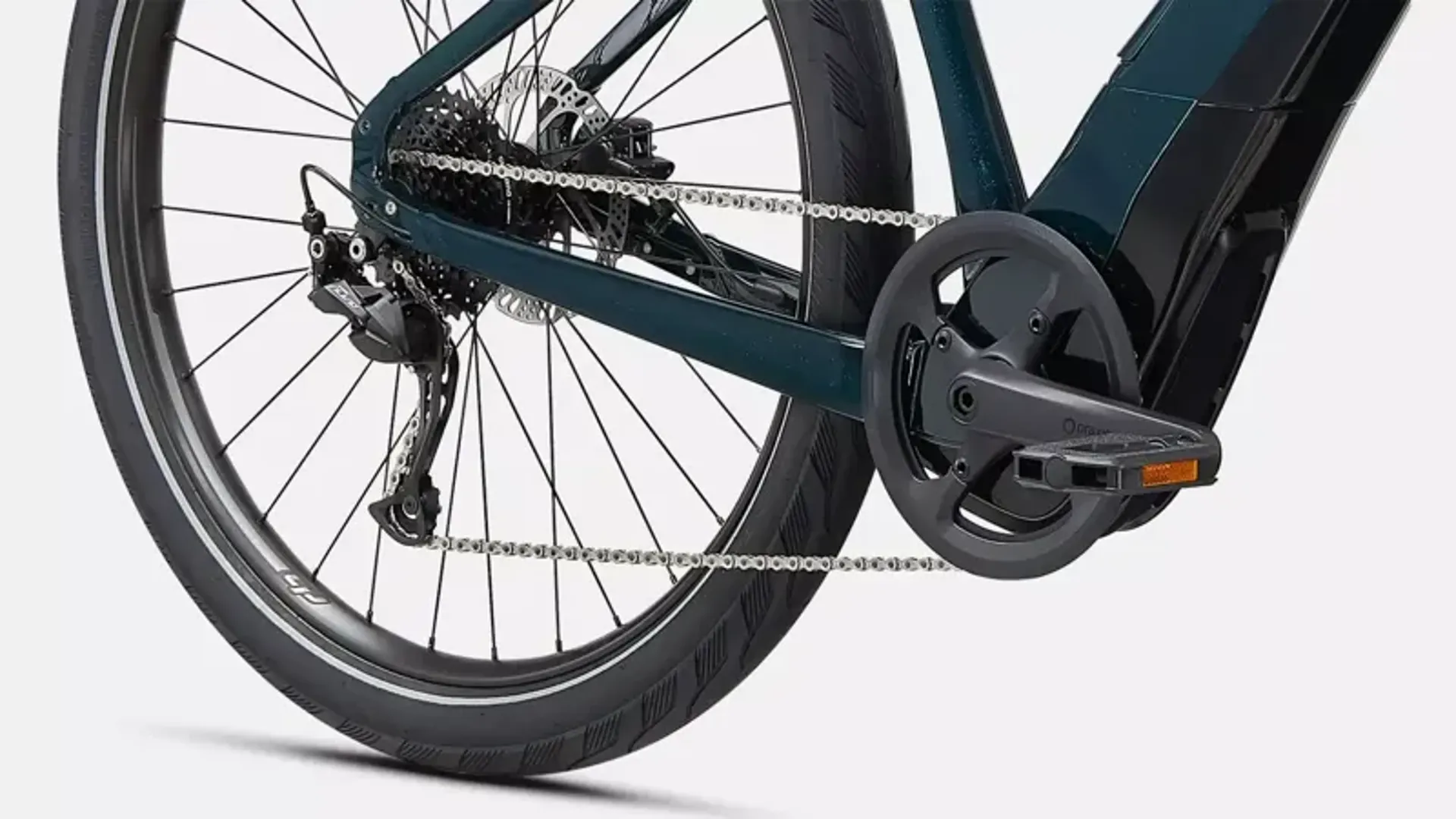

Crankset
Custom alloy forged crankarms
-
Rims
650b disk, double-wall alloy, pinned, 32h
-
Hubs
Front: Specialized front hub disk, sealed bearings, 15x100mm thru-axle, 32h; Rear: Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
-
Spokes
DT Swiss Industry
-

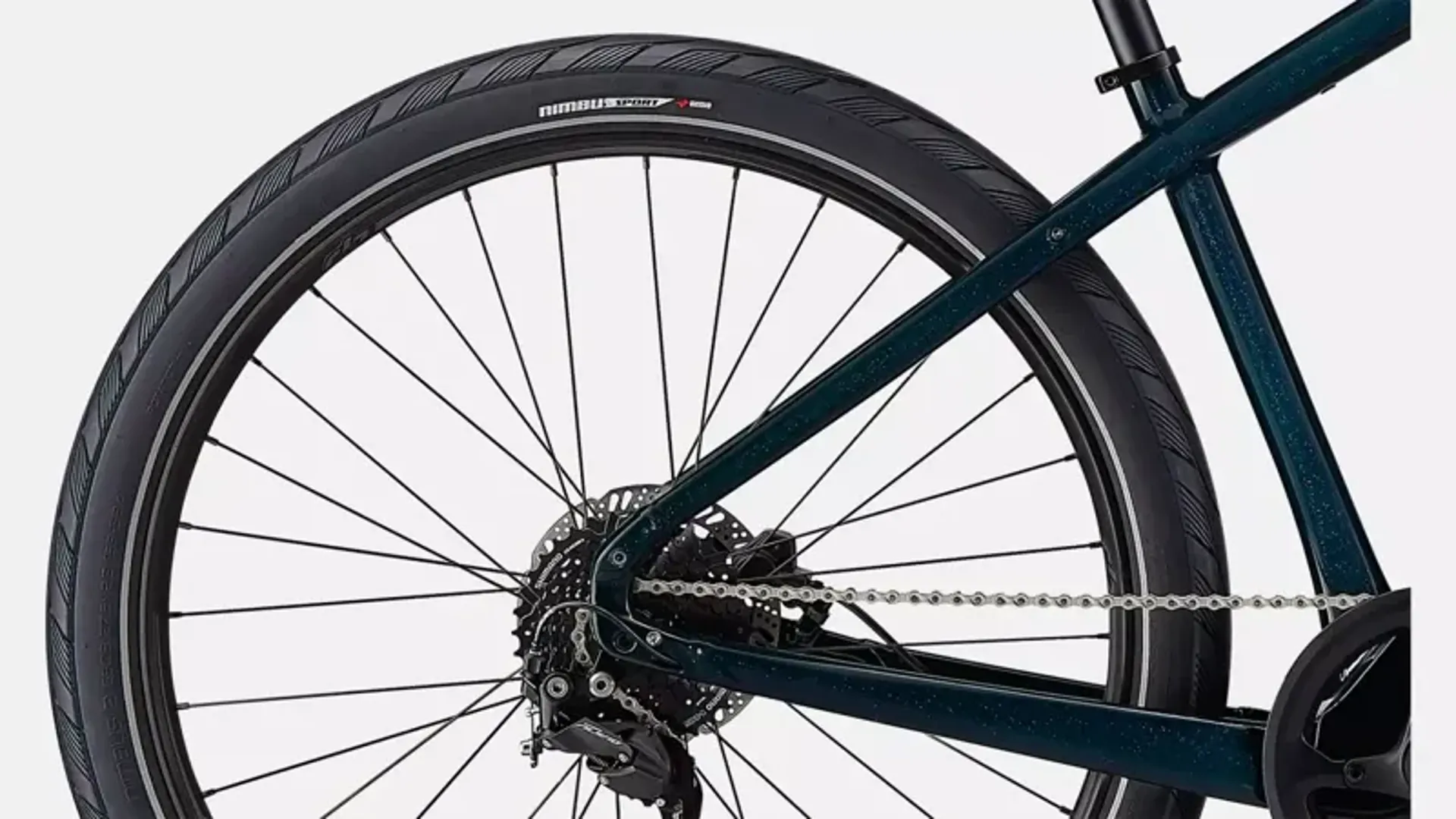

Tires
Nimbus II Sport Reflect, 60 TPI, 650b x 2.3"
-
Inner Tubes
Schrader, 40mm valve
-
Saddle
Body Geometry "The Cup," 6-degree rise, elastomer base, steel rails, SWAT™ compatible mounts, 245mm
-
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
-
Handlebars
Specialized, alloy, 30-degree backsweep, 26mm rise, 680mm width, 31.8mm
-
Grips
Specialized Body Geometry Contour, lock-on
-
Seatpost
Specialized, alloy, 2-bolt, 12.5mm offset, 30.9mm
-
Pedals
Specialized Commuter w/ grip tape & reflectors
-
Taillight
Specialized integrated saddle mount, LED technology, 6V
-
Kickstand
Specialized kickstand, 40mm mount
-
Bell
Simple bell
-
Geometry: Crank Length
S: 170mm, M/L: 170mm, XL: 175mm
-
Geometry: Handlebar Width
680mm (all sizes)
-
Geometry: Stem Length
60mm (all sizes)
-
Geometry: Saddle Width
245mm (all sizes)
-
Geometry: Seatpost Length
S: 350mm, M/L: 350mm, XL: 400mm
-
Geometry: Stack
S: 667mm, M/L: 699mm, XL: 675mm
-
Geometry: Reach
S: 337mm, M/L: 363mm, XL: 372mm
-
Geometry: Seat Tube Length
S: 420mm, M/L: 450mm, XL: 500mm
-
Geometry: Top Tube Length
S: 620mm, M/L: 660mm, XL: 690mm
-
Geometry: Chainstay Length
485mm (all sizes)
-
Geometry: Wheelbase
S: 1103mm, M/L: 1142mm, XL: 1171mm
-
Geometry: Standover Height
S: 811mm, M/L: 835mm, XL: 884mm
-
Geometry: Head Tube Height
S: 190mm, M/L: 225mm, XL: 280mm
-
Geometry: BB Drop
75mm (all sizes)
-
Geometry: Seat Tube Angle
68° (all sizes)
-
Geometry: Head Tube Angle
68° (all sizes)
