Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.
Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.
Orbea

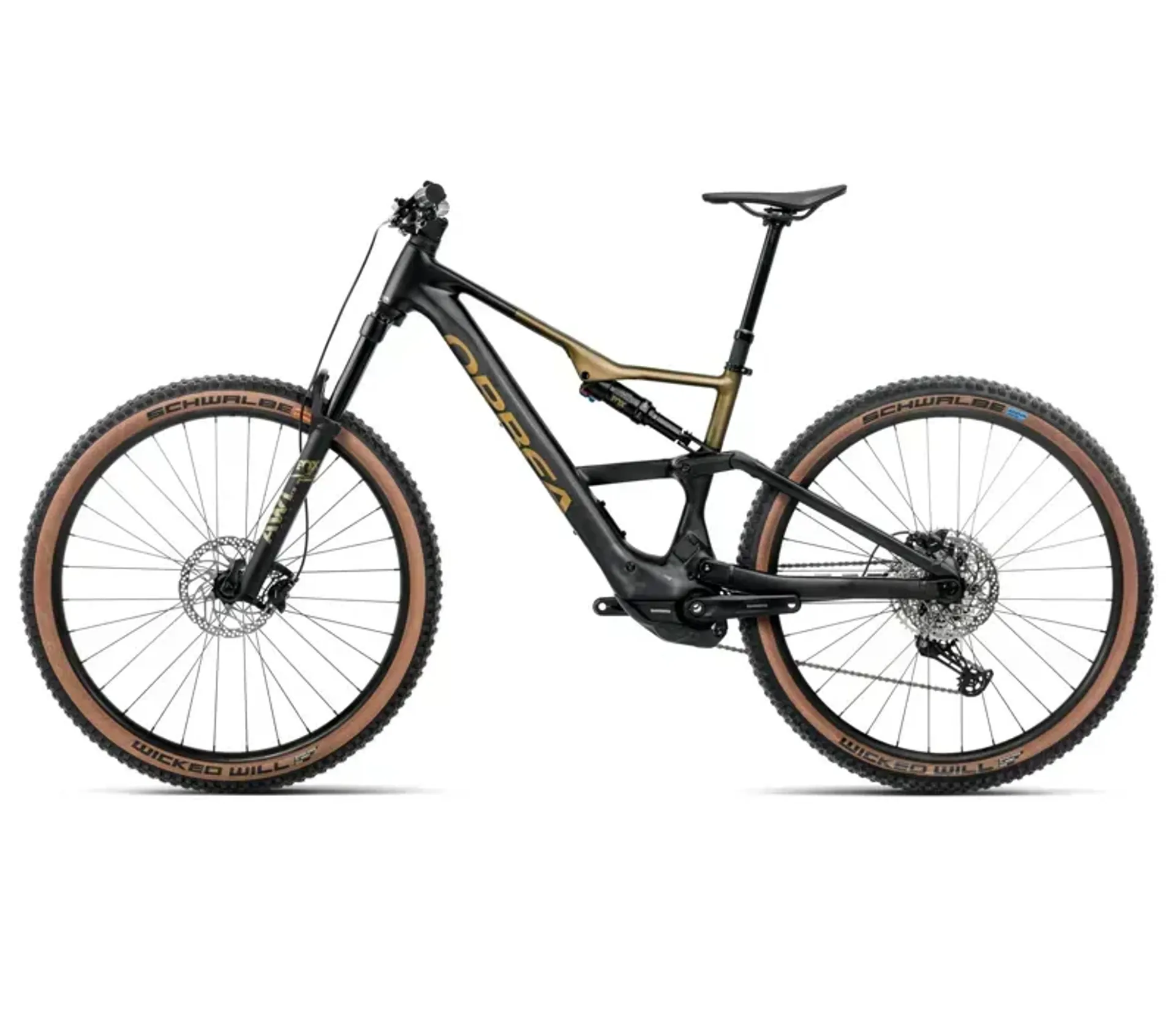

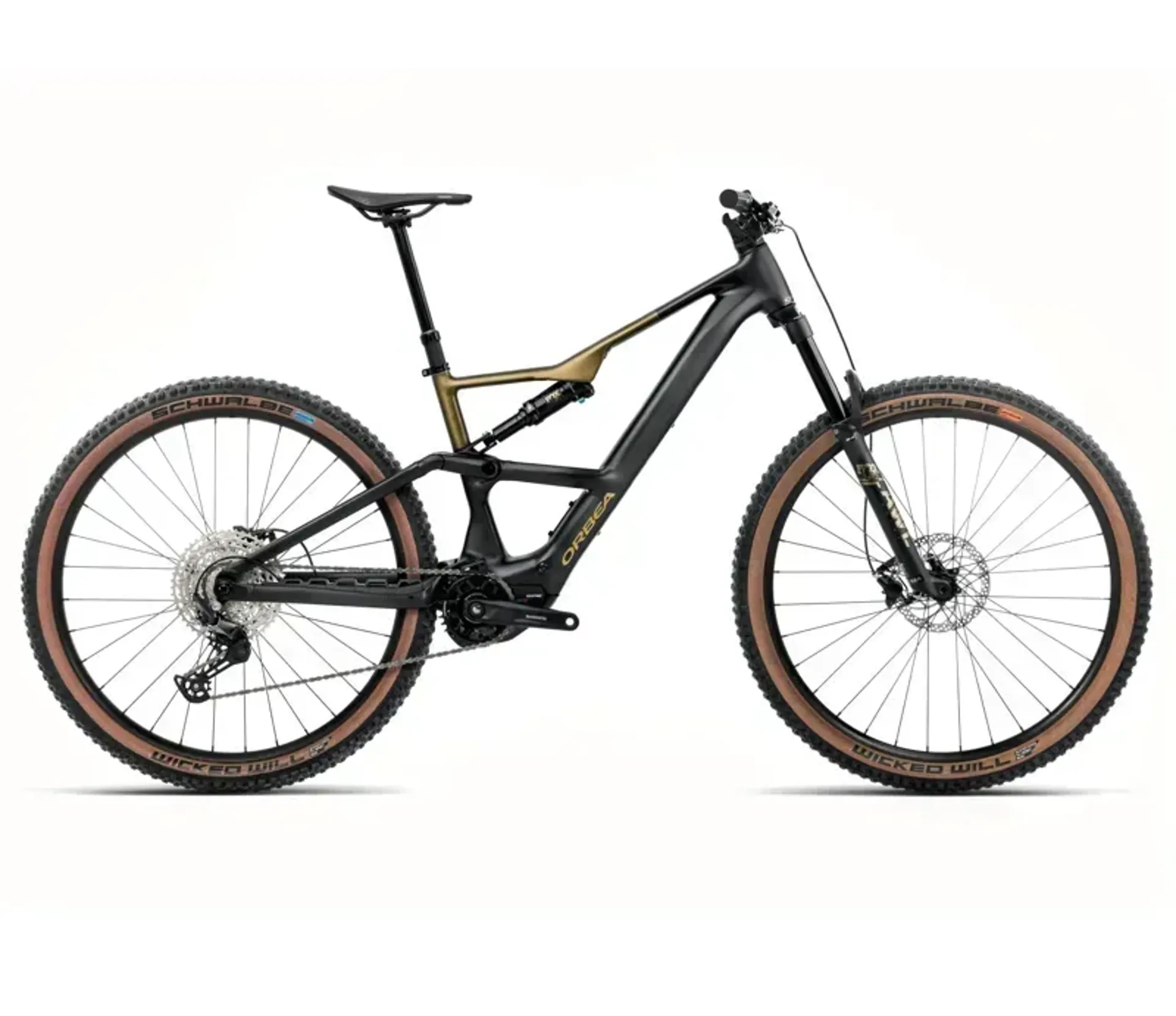

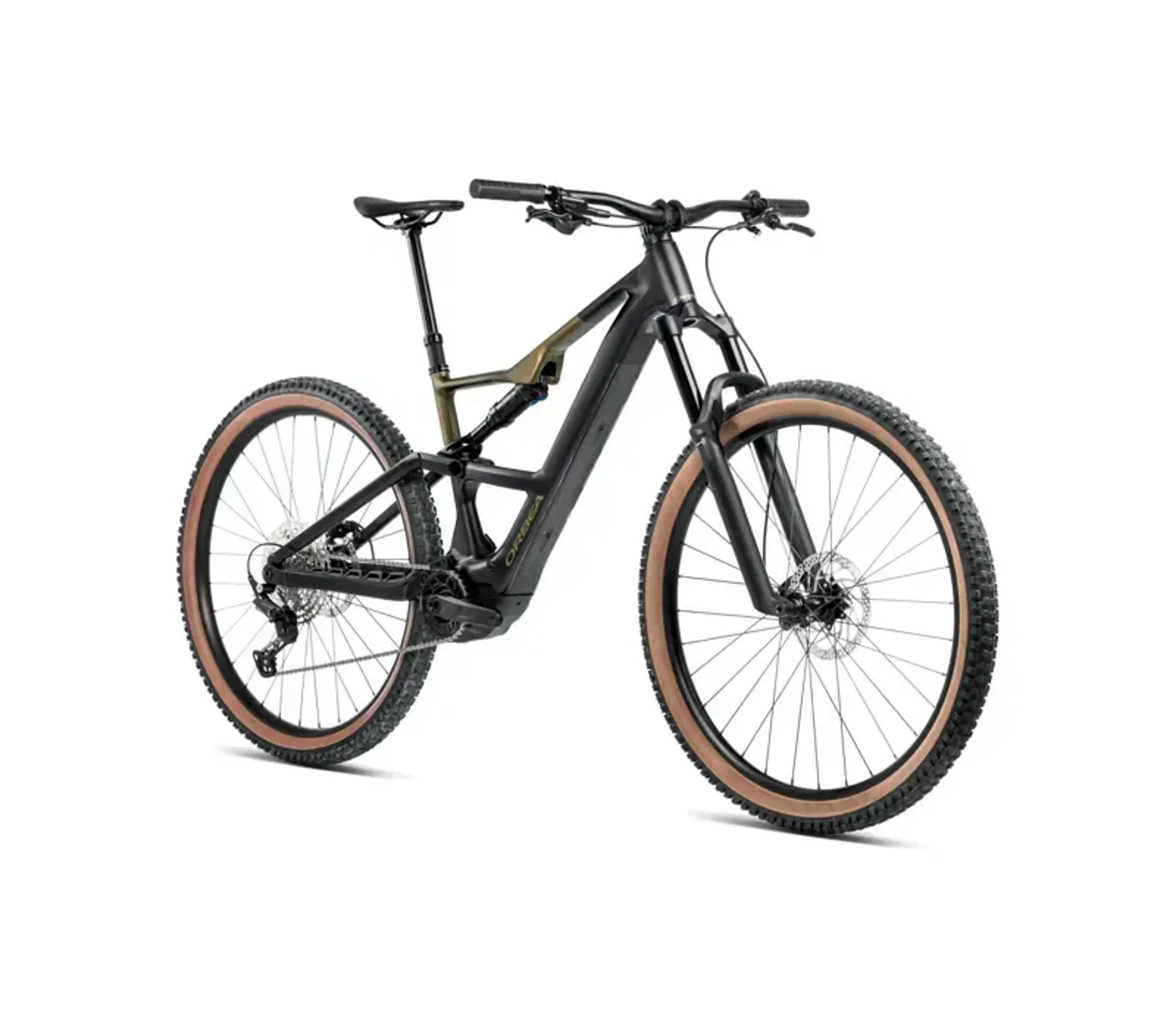

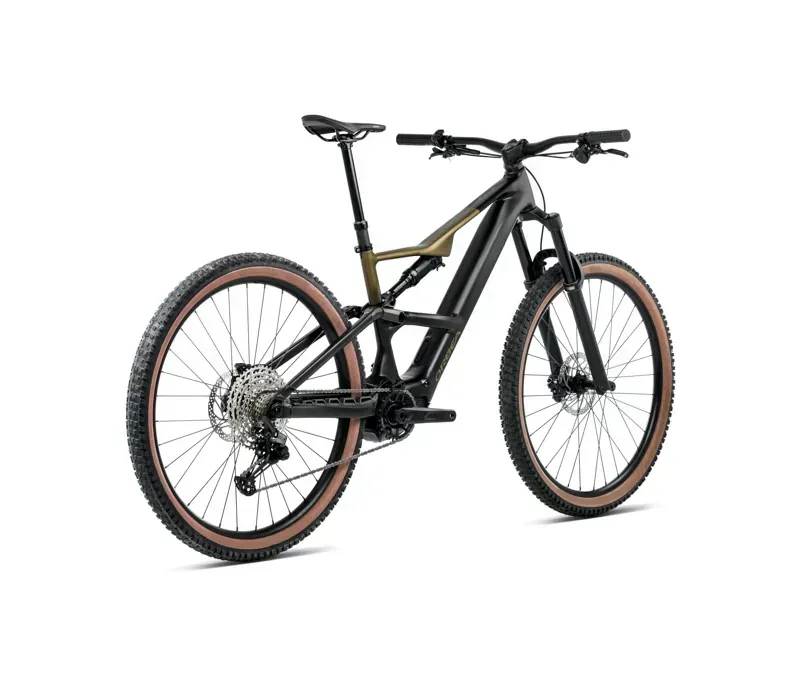

Orbea Rise SL H30 20mph E-MTB in Diamond Black/Splash Olive Green Matt

$4,799.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Orbea Rise SL H30 20mph E-MTB in Diamond Black/Splash Olive Green Matt

Season:2026

Brand:Orbea

Code:T619TTCCST

Rise is ready to reshape the lightweight e-bike market once again.

Leaner and keener than ever, with more energy packed into every gram. Better handling, more power, and increased stamina. The updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

Features:

  • High polished alloy - Each weld on the main frame is polished smooth, matching the esthetics of a monocoque frame. Importantly, the action of polishing the welds increases fatigue resistance at these high stress points.
  • Tuned rigidity // High performance handling - For the best handling, bikes need the correct rigidity in the correct places. Rise's new asymmetric frame design is key to tuning the frame rigidity. The result is predictable performance when you are pushing the limits.
  • The new Rider Synergy - Rider Synergy (RS) is the heart of the Rise. It provides the most natural, elastic assistance and best-in-class battery range for the most epic adventures. Now the Rise takes that even further with the option to increase torque to 85Nm.
  • Steep 'n' Deep - Drop the saddle right out of the way to give more space to move your body and even better control. With the Rise, you can fit up to a 230mm dropper. Long-travel droppers are the only way!
  • Further and faster - The natural RS Gen2 assistance works with you to involve you in the ride, providing assistance where it is needed and conserving battery life elsewhere.
Technical Information
  • Frame
    Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
  • Shock
    Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
  • Fork
    Fox 34 Float AWL Sport 140 Rail QR15x110
  • Steerer tube
    Alloy 1-1/2", Black Oxidated Bearing
  • Battery
    Orbea Internal 540Wh
  • Motor
    Shimano EP600 RS Gen2 MC
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Remote
    EN600-L
  • Chainring
    e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
  • Crank
    Shimano Steps EM600
  • Shifters
    Shimano Deore M6100
  • Cassette
    Shimano CS-M6100 10-51t 12-Speed
  • Rear derailleur
    Shimano Deore M6100 SGS Shadow Plus
  • Chain
    Shimano M6100
  • Chainguide
    Orbea eBike chainguide
  • Handlebar
    OC Mountain Control MC31, Rise20, Width 800
  • Stem
    OC Mountain Control MC20, 0º
  • Computer Mount
    OC Computer Mount CM-05, Garmin/Sigma
  • Brakes
    Shimano MT201 Hydraulic Disk
  • Wheels
    Alloy, Tubeless, 29", 29c, 32H
  • Tires
    Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Seatpost Lever
    Shimano SL-MT500
  • Saddle
    Fizik Terra Ridon X5 145mm
  • Grips
    OC Lock On
